- Type: Cyanoacrylate Super Glue
- Brand: Adhesive Systems, Inc.
- Set Speed: Fast
- Properties: Toughened
About the ASI HP Series Cyanoacrylate Super Glue
The Adhesive Systems Inc (ASI) HP Series cyanoacrylate is a rubber toughened super glue formulated for maximum impact resistance. The rubber toughened HP Series also offers great thermo cycling properties and sheer strength.
Benefits of the HP Series Cyanoacrylates
- Rubber Toughened for maximum impact resistance
- Provides strong bond even with vibrations
- Single component (no mixing or nozzles required)
- Cures at room temperature
- Good for bonding most substrates
- Fast cure time
- Dispensing can be automated
- Long term bonds
- Economical
- Meets most military (MilSpec) standards
- Can replace heavy mechanical fasteners
The HP Series Cyanoacrylates Bond:
- ABS NBR
- Acrylic Neoprene
- Aluminum Nitrile
- Bakelite Nylon
- Brass Phenolic
- Chloroprene Polycarbonate
- Chrome Polyester
- Cooper Polystyrene
- EPDM Porcelain
- Fiberglass PVC
- Latex SBR
- Leather Steel
- Natural Rubber Valox
- Wood
ASI HP Series Rubber Toughened Cyanoacrylate Specifications
Properties
- Color: Black
- Viscosity: 300
- Specific Gravity: 1.10
- Base: Modified Ethyl
Chemical and Solvent Resistance
% OF STRENGTH RETAINED AFTER AGING FOR 500 HOURS
- GASOLINE @ 220C: 100%
- ISOPROPANOL @ 220C: 100%
- ETHANOL @ 220C: 100%
- FREON TA @ 220C% 100%
- MOTOR OIL @ 400C% 100%
- POLYCARBONATE 400C @ 95% RH 100%
Cure Time and Bond Strength By Substrate
- Steel < 12 Seconds > 2100 psi
- Aluminum < 12 Seconds > 1750 psi
- Neoprene < 5 Seconds > 750 psi
- ABS < 10 Seconds > 900 psi
- PVC < 5 Seconds > 900 psi
- Polycarbonate < 10 Seconds > 900 psi
- Phenolic < 10 Seconds > 850 psi
Specifications By Viscosity
PRODUCT | GAP FILL | VISCOSITY | STRENGTH | TEMP RANGE | CURE SPEED (FIXTURE/FULL) | MIL SPEC A 46050C |
HP 300 | 0.006 | 300 cps | 3750 | -65 to+250° F | <10 Sec/8 Hours | Type II, Class 2 |
HP 1000 | 0.009 | 1,000 cps | 3750 | -65 to+250° F | <12 Sec/8 Hours | Type II, Class 3 |
HP 4000 | 0.01 | 4,000 cps | 3750 | -65 to+250° F | <18 Sec/8 Hours | Type II, Class 3 |
HP 10000 | 0.012 | 10,000 cps | 3500 | -65 to+250° F | <20 Sec/8 Hours |
ASI HP Series Cyanoacrylate Data Sheets
ASI HP Series Technical Data Sheets
ASI HP Series Safety Data Sheet
Questions about ASI HP Series? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
Guaranteed Safe Checkout
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Compare with Similar Products
|
|
|
---|---|---|
Best Seller
|
||
Price | $$$$$ | $$$$$ |
Type | Cyanoacrylate Super Glue | Cyanoacrylate Super Glue |
Brand | Adhesive Systems, Inc. | Infinity Bond |
Viscosity | 300 - 10,000 cps | 110 - 4,500 cps |
Temp Resistance | -65F to 250F | -65F to 250F |
Color | Black | Clear Black |

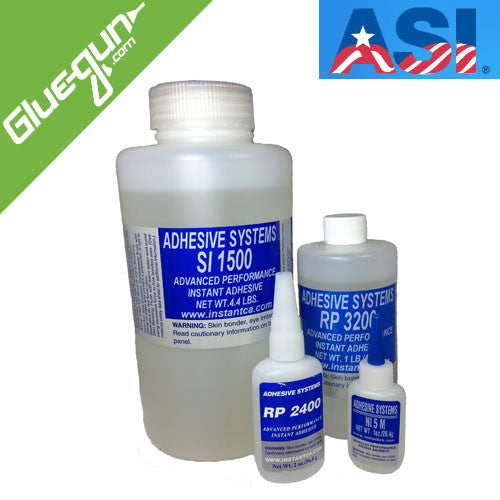

Size | 1 oz bottle 2 oz bottle 1 lb bottle 4.4 lb bottle | 1 oz bottle 1 lb bottle |
