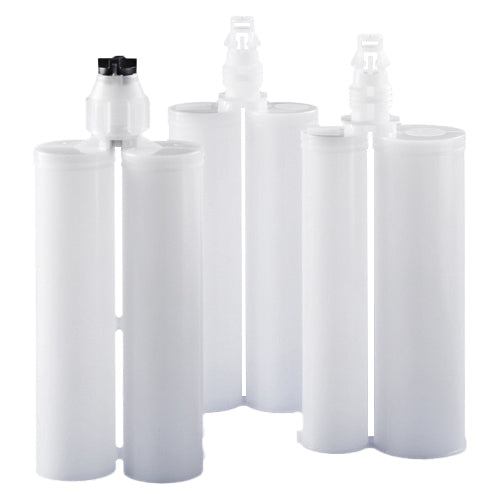

Nordson EFD 200 mL Side By Side Empty Adhesive Cartridges
Fill out the details below and we'll get pricing right over to you.
Nordson EFD 200 mL Side By Side Empty Adhesive Cartridges
Product Highlights
- Type: Cartridge System
- Brand: Nordson EFD
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: 200 ml
Nordson EFD 200 mL Side By Side Empty Adhesive Cartridges Overview
The Nordson EFD 200mL cartridge system comes in a variety of 1:1 and 2:1 configurations to meet your specific dispensing needs. This high quality, the single-piece cartridge will fit almost all industry-standard cartridge glue guns.
Features and Benefits
- 1:1 and 2:1 ratios
- Total volume capacity of 215mL for 1:1 ratio and 222mL for 2:1 ratio.
- High-quality, sturdy one-piece design
- Fits industry standard dispensers
- Available from stock
- Open or closed outlet
- Solid Multi-Seal Piston or Multi-Seal Piston with a Pre-stage Center Bleed Plug
- New AF piston available for 1:1 ratio
Required Retaining Nut and Piston
Each empty glue cartridge comes with the standard Nordson EFD 7702598 Plastic Retaining Nut to hold on a static mixer.
Cartridge System Includes
- Nordson EFD 7702598
- Nordson 200ml 1:1 Pistons: 7702664
- Nordson 200ml 2:1 Pistons
- Small 7702672
- Large 7702674
Cartridge System Outlet Options
Open End Outlet
- Pre-assembled with traditional nose plugs and retaining nuts
- Most are available in polypropylene (PP) or Nylon
Hermetically Sealed Closed-End Outlet
- Features Nordson EFD patented "pry-off" closure
- Molded in one operation
- Cost-effective alternative to open-end cartridges
Specifications
- Series: Side by Side
- Type: Cartridge System
- Size: 200 mL
- Ratio: 1:1, 2:1
- Material: Polypropylene or Nylon
| Nordson EFD SKU PP/Nylon | Usable Volume | Description |
|
7703001 |
215mL |
Open-End Cartridge w/Installed Nose Plug & 3/8" Nut |
|
7703004 |
215mL |
Open-End Cartridge w/Installed Nose Plug & 1/2" Nut |
|
7702942 7702947 |
215mL |
Closed-End Cartridge w/Protective Cap |
|
7704307 (PE/PBT) |
– |
AF Air Free Piston |
|
7702744* 7702745* |
– |
Multi-seal Piston w/Pre-staged Bleed Plug |
|
7702950 7015947 |
222mL |
Closed-End Cartridge w/Protective Cap |
|
7702672* |
– |
Solid Multi-seal Piston (Small side) |
|
7702674* |
– |
Solid Multi-seal Piston (Large side) |
|
7702752* 7015948 |
– |
Multi-seal Piston w/Pre-staged Bleed Plug (Small side) |
|
7702754* 7015949 |
– |
Multi-seal Piston w/Pre-staged Bleed Plug (Large side) |
Recommended Static Mixing Nozzles
- Series 480 Disposable Square OptiMixers
-
Series 160 Disposable Plastic Spiral Bell Mixer
-
Series 260 Spiral Bell
- Series 280 Disposable Plastic Turbo (Square) Bell Mixer
-
Series 281N Disposable Plastic High Flow Turbo (Square) Mixer
