Nordson EFD 400 mL Side By Side Empty Adhesive Cartridges
Fill out the details below and we'll get pricing right over to you.
Nordson EFD 400 mL Side By Side Empty Adhesive Cartridges
Product Highlights
- Type: Cartridge System
- Brand: Nordson EFD
- Adhesive Ratio: 1:1
- Cartridge Size: 400 ml

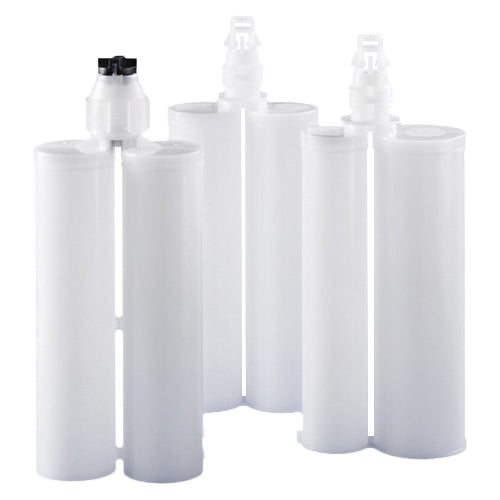

Nordson EFD 400 mL Side By Side Empty Adhesive Cartridges Overview
The Nordson EFD 400mL cartridge system comes in a variety of 1:1 configurations to meet your specific dispensing needs. This high quality, the single-piece empty glue cartridge will fit almost all industry-standard cartridge dispenser.
Features and Benefits
- 1:1 ratio only
- Total volume capacity of 406mL
- High quality, sturdy one-piece design
- Fits industry standard dispensers
- Available from stock Open or closed outlet
- Solid Multi-Seal Piston or Multi-Seal Piston with Pre-stage Center Bleed Plug
Required Retaining Nut and Piston
Each empty glue cartridge comes with the standard Nordson EFD 7702598 Plastic Retaining Nut to hold on a static mixer.
Cartridge System Includes
- Nordson EFD 7702598
- Nordson 400ml 1:1 Pistons: 7702677
Cartridge System Outlet Options
Open End Outlet
- Pre-assembled with traditional nose plugs and retaining nuts
- Most are available in polypropylene (PP) or Nylon
Hermetically Sealed Closed End Outlet
- Features Nordson EFD patented "pry-off" closure
- Molded in one operation
- Cost-effective alternative to open end cartridges
Specifications
- Series: Side by Side
- Type: Cartridge System
- Size: 400 mL
- Ratio: 1:1
- Material: Polypropylene or Nylon
| Nordson SKU (PP) | Nordson SKU (Nylon) | Usable Volume | Configuration |
|
7703011 |
406mL |
Open-End Cartridge w/Installed Nose Plug & 3/8” Nut |
|
|
7703013 |
7028234* |
406mL** |
Open-End Cartridge w/Installed Nose Plug & 1/2” Nut |
|
7702965 |
7702968 |
406mL |
Closed-End Cartridge w/Protective Cap |
|
7702677* |
7702678* |
– |
Solid Multi-seal Piston |
|
7702757* |
7702759* |
– |
Multi-seal Piston w/Pre-staged Bleed Plug |
Recommended Static Mixing Nozzles
- Series 480 Disposable Square OptiMixers
- Series 160 Disposable Plastic Spiral Bell Mixer
- Series 260 Spiral Bell
- Series 180A Turbo Bell Series
- Series 280 Disposable Plastic Turbo (Square) Bell Mixer
- Series 281N Disposable Plastic High Flow Turbo (Square) Mixer
Recommended Dispensers
