Product Highlights
- Type: Static Mixer
- Brand: Nordson EFD
- Connection Type: Bayonet
- Tip Style: Stepped Tip
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: 50 ml, 25 ml, 75 ml
- Viscosity: High

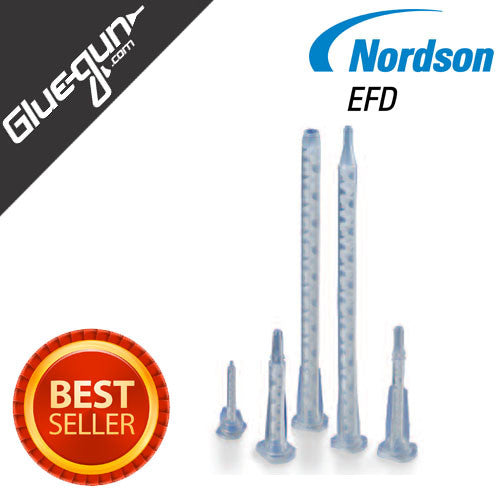

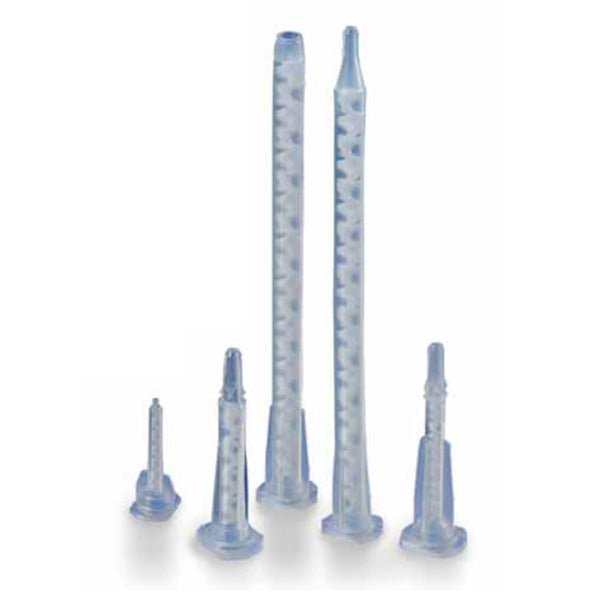

Nordson 7701488 (TAH 190-620-01) Static Mixing Nozzle Overview
The Nordson 190-620-01 is a Bayonet style static mixing nozzle with 20 mixing elements and an element diameter of 6.35 mm (.250 in). This static mixer has a Stepped tip allowing for the adjustment of bead size by cutting the nozzle tip. The 190-620-01 mixer is one of our most popular Nordson TAH glue nozzles for mixing and dispensing.
Works With
- Standard Cartridges
Features and Benefits
- About 2/3 of the length of comparative spiral mixers
- Consistent high-quality mixing
- Cost Savings due to reduced adhesive waste
- Improved service life compared to competitive square mixers
- Bayonet detail fits on standard 50mL cartridges
Specifications
- Series: Nordson TAH 190-620-01
- New Part Number: 7701488
- Type: Disposable Plastic Spiral Bayonet Mixer
- Bayonet Connector
- Stepped Tip
- Elements: Polyplas
- Housing: Polypropylene
Gluegun.com offers a low price guarantee on the Nordson 190-620-01 static mixing nozzle. Always feel free to contact us with questions regarding this product or your dispensing application.
Questions about Nordson 7701488? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
Authorized Nordson EFD Supplier
Guaranteed Safe Checkout
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Compare with Similar Products
|
|
|
|
|---|---|---|
|
Best Seller
|
||
| Price | $$$$ | $$$$ |
| Type | Static Mixer | Static Mixer |
| Brand | Nordson EFD | Infinity Bond |
| Connection Type | Bayonet | Bayonet |
| Adhesive Ratio | 1:1 2:1 | 1:1 2:1 |
| Elements | 20 | 20 |
| Tip Style | Stepped Tip | Stepped Tip |
| Cartridge Size | 50 ml 25 ml 75 ml | 50 ml 25 ml 75 ml |
