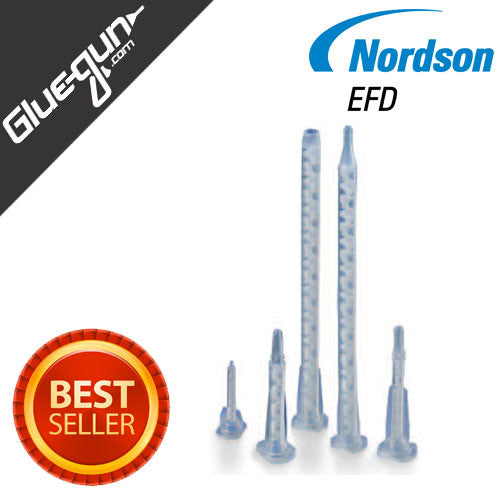

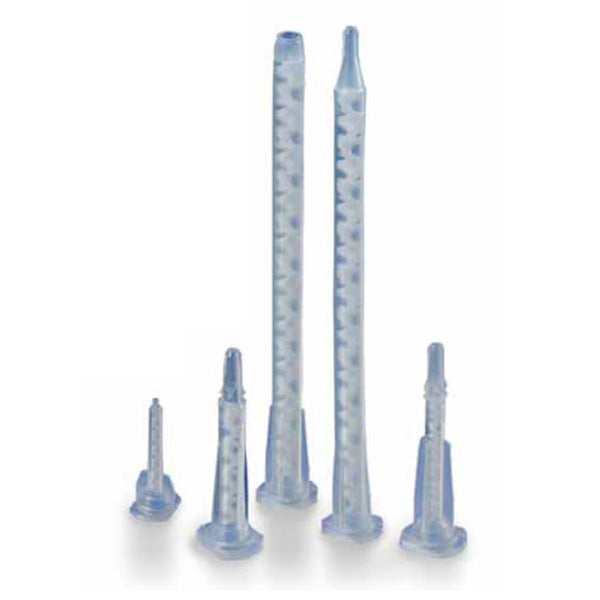

Nordson 7701507 (TAH 190-620BT) Static Mixing Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Nordson EFD
- Connection Type: Bayonet
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: 50 ml, 25 ml, 75 ml
- Viscosity: High
Nordson 7701507 (TAH 190-620BT) Static Mixing Nozzle Overview
The Nordson 190-620BT (now Nordson 7701507) is a Bayonet style static mixing nozzle with 20 mixing elements and an element diameter of 6.35 mm (.250 in). This static mixer has a Full Bore tip allowing for maximum flow with minimum back pressure. The 190-620BT mixer is one of our most popular Nordson TAH glue nozzles for mixing and dispensing.
Works With
- Standard Cartridges
Features and Benefits
- About 2/3 of the length of comparative spiral mixers
- Consistent high-quality mixing
- Cost Savings due to reduced adhesive waste
- Improved service life compared to competitive square mixers
- Bayonet detail fits on standard 50mL cartridges
Specifications
- Series: Nordson TAH 190-620BT
- New Part Number: 7701507
- Type: Disposable Plastic Spiral Bayonet Mixer
- Bayonet Connector
- Full Bore Tip
- Elements: Polyplas
- Housing: Polypropylene
Gluegun.com offers a low price guarantee on the Nordson 190-620BT static mixing nozzle. Always feel free to contact us with questions regarding this product or your dispensing application.
