Sulzer Mixpac MBH (MB) Series Static Mixer Nozzles
Product Highlights
- Type: Static Mixer
- Brand: Sulzer Mixpac
- Connection Type: Twist and Lock, Sulzer B Series
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: 25 ml, 50 ml, 75 ml
- Sulzer System: B System
About the Sulzer Mixpac MBH Series Static Mix Nozzles
The Sulzer Mixpac MBH Series (formerly MB Series) mixers can be used with the Sulzer B system components and connect with a twist and lock system. The MBH mixer is for 1:1 and 2:1 adhesive dispensing.
The MBH static mixer is different from other mixers in that it uses a divided outlets at the point of the cartridge and mixer keeping materials from plugging and contaminating before they are supposed to be mixed.
Sulzer MBH Nozzle Configurations
- Sulzer MBH 03-12D
- Sulzer MBH 03-12S
- Sulzer MBH 03-16D
- Sulzer MBH 03-16L
- Sulzer MBH 03-16S
- Sulzer MBH 04-12D
- Sulzer MBH 04-16D
- Sulzer MBH 04-16S
- Sulzer MBH 05-06T
- Sulzer MBH 05-12D
- Sulzer MBH 05-14D
- Sulzer MBH 05-16T
- Sulzer MBH 05-20T
- Sulzer MBH 06-11D
- Sulzer MBH 06-16T
- Sulzer MBH 06-20T
- Sulzer MBH 07-11D
Gluegun.com offers a low price guarantee on the MB Series Mixers, contact us with questions or for volume discounts.
Note: See the Sulzer Mixpac MBHX Series for 4:1 and 10:1 B System dispensing.
Sulzer Mixpac MBH Static Mixer Specifications
Elements: Acetalcopolymere
Housing: Polypropylene (PP)
Sulzer MixPac MBH Specifications & Part Numbers

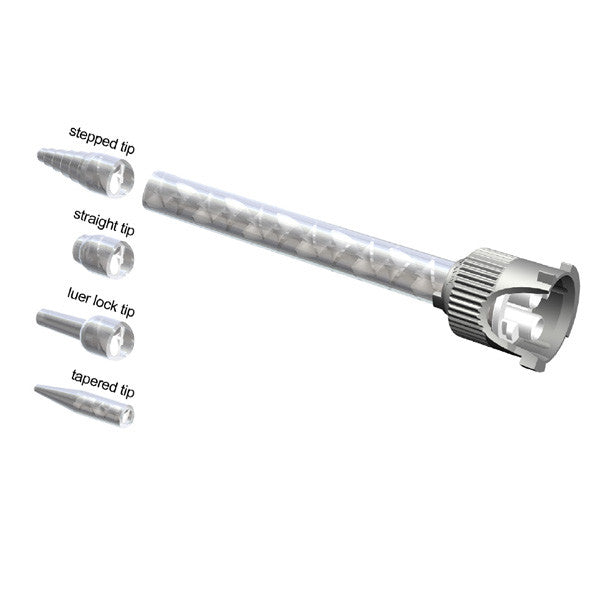

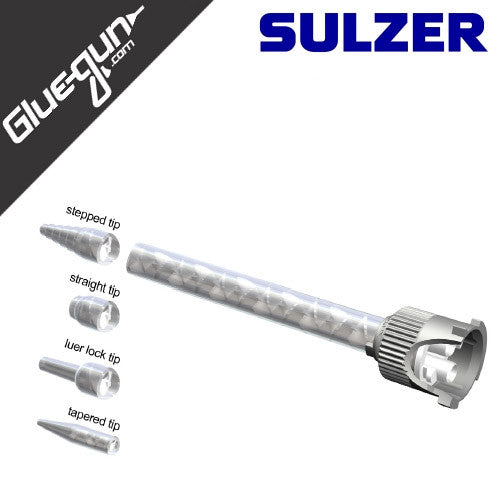

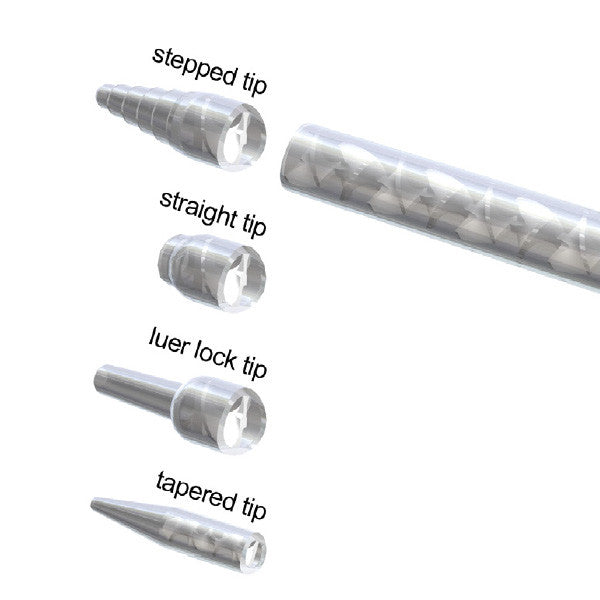

Mixer helix, 1:1/2:1, dust grey, white elements, tapered, straight, stepped and luer lock tip options.
| Part number | Article/Number | Elements | Ø(mm) | L(mm) | Vol. (ml) |
| 116457 | MBH 03-12D | 12 | 3.2 | 58 | 0.49 |
| 116458 | MBH 03-12S | 12 | 3.2 | 63.5 | 0.49 |
| 116459 | MBH 03-16D | 16 | 3.2 | 70.7 | 0.63 |
| 116460 | MBH 03-16L | 16 | 3.2 | 75.8 | 0.63 |
| 116461 | MBH 03-16S | 16 | 3.2 | 76.5 | 0.59 |
| 116462 | MBH 04-12D | 12 | 4.2 | 69.5 | 0.84 |
| 116463 | MBH 04-16D | 16 | 4.2 | 86.2 | 1.04 |
| 116464 | MBH 04-16S | 16 | 4.2 | 96 | 1.04 |
| 116575 | MBH 05-06T | 6 | 5.4 | 59.3 | 0.94 |
| 116465 | MBH 05-12D | 12 | 5.4 | 82.5 | 1.52 |
| 116466 | MBH 05-14D | 14 | 5.4 | 111.8 | 1.91 |
| 116467 | MBH 05-16T | 16 | 5.4 | 111.8 | 1.91 |
| 116468 | MBH 05-20T | 20 | 5.4 | 132.8 | 2.29 |
| 116469 | MBH 06-11D | 11 | 6.5 | 88.5 | 2.28 |
| 116470 | MBH 06-16T | 16 | 6.5 | 131 | 3.14 |
| 116471 | MBH 06-20T | 20 | 6.5 | 157 | 3.76 |
| 116472 | MBH 07-11D | 11 | 7.5 | 91.5 | 3.05 |
Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
