Sulzer Mixpac C System 400 ml Cartridge System
Product Highlights
- Type: Cartridge System
- Brand: Sulzer Mixpac
- Adhesive Ratio: 10:1, 1:1, 2:1, 4:1
- Cartridge Size: 400 ml
- Sulzer System: C System
About the Sulzer Mixpac C System 400 Adhesive Cartridges
The Sulzer Mixpac 400ml C-System cartridges are a sided by side dispensing solution for two part adhesives. The C-System cartridges can be filled with most two part adhesive materials that need to be mixed to activate. A static mixer nozzle can then be attached to the cartridge system and dispense the material using standard 400ml manual or pneumatic guns.
The Sulzer Mixpac C-System cartridges offer a complete dispensing system including a plastic cartridge, self-venting lip seal pistons, preassembled nose plug and a 13mm retaining nut. The Sulzer C-System cartridges are available in either PP or PA plastic and in ratios of 1:1, 2:1, 4:1 or 10:1.
Benefits of the Sulzer 400ml C-System Cartridges
- Rigid design: precise metering – more accurate application and excellent long-term stability
- Valve pistons: safe and fast filling with no air pockets
- Leakproof tested: safe storage and application of the 2-component material up to +40 °C
- QUADRO™ mixing technology: Excellent mixing performance with minimal pressure loss and high dispensing performance
- Wide range of mixers: optimal mixer for every application
Sulzer Mixpac C-System 400ml Cartridge Specifications

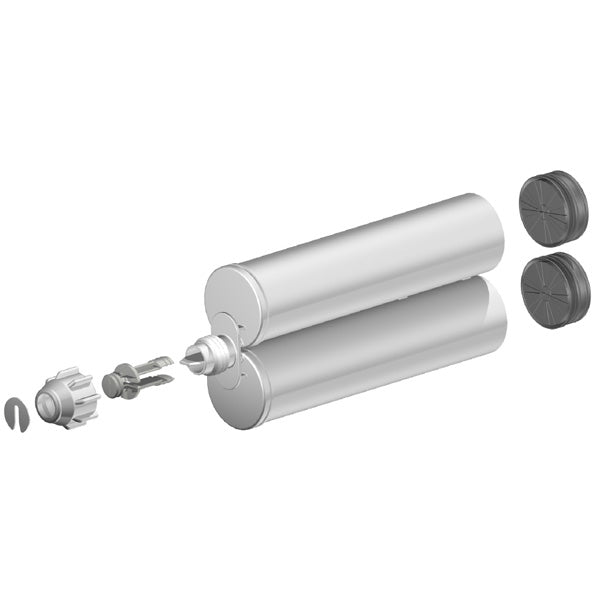

Sulzer C-System 1:1 Ratio Cartridge Specifications
|
Part number |
Article |
Description |
Units / box |
|
103721 |
AC 400-01-10-01 |
Set 400, 1:1, PP natural, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
180 |
|
112702 |
AC 400-01-30-01 |
Set 400, 1:1, PA natural, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
180 |

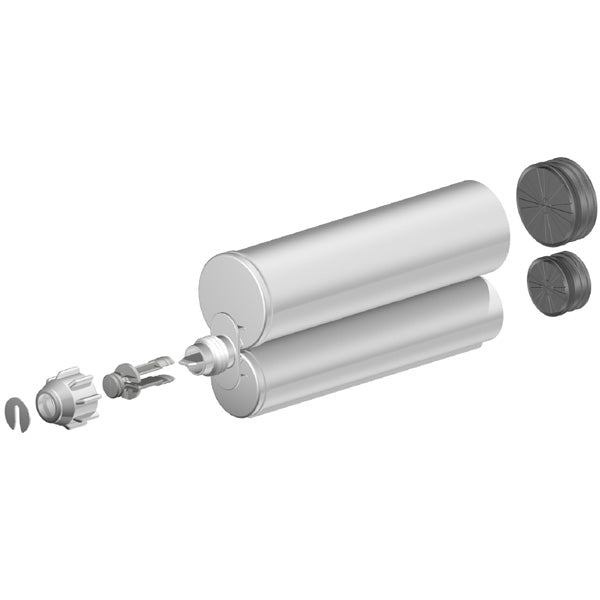

Sulzer C-System 2:1 Ratio Cartridge Specifications
|
Part number |
Article |
Description |
Units / box |
|
108663 |
AC 400-02-10-01 |
Set 400, 2:1, PP natural, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
175 |

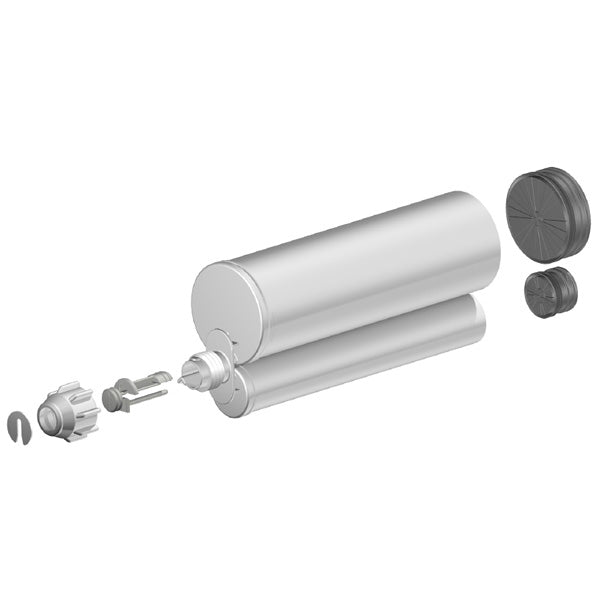

Sulzer C-System 4:1 Ratio Cartridge Specifications
|
Part number |
Article |
Description |
Units / box |
|
112530 |
AC 400-04-10-01 |
Set 400, 4:1, PP natural, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
170 |
|
115454 |
AC 400-04-10-05 |
Set 400, 4:1, PP natural, without nose, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
170 |

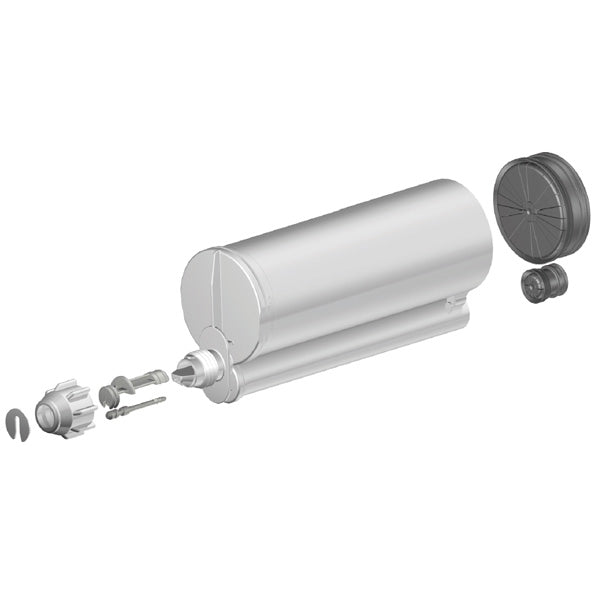

Sulzer C-System 10:1 Ratio Cartridge Specifications
|
Part number |
Article |
Description |
Units / box |
|
112622 |
AC 400-10-10-01 |
Set 400, 10:1, PP natural, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
165 |
|
113615 |
AC 400-10-10-05 |
Set 400, 10:1, PP natural, cartridge A without nose, self-venting lip seal pistons, preassembled nose plug, retaining nut 13mm |
165 |
