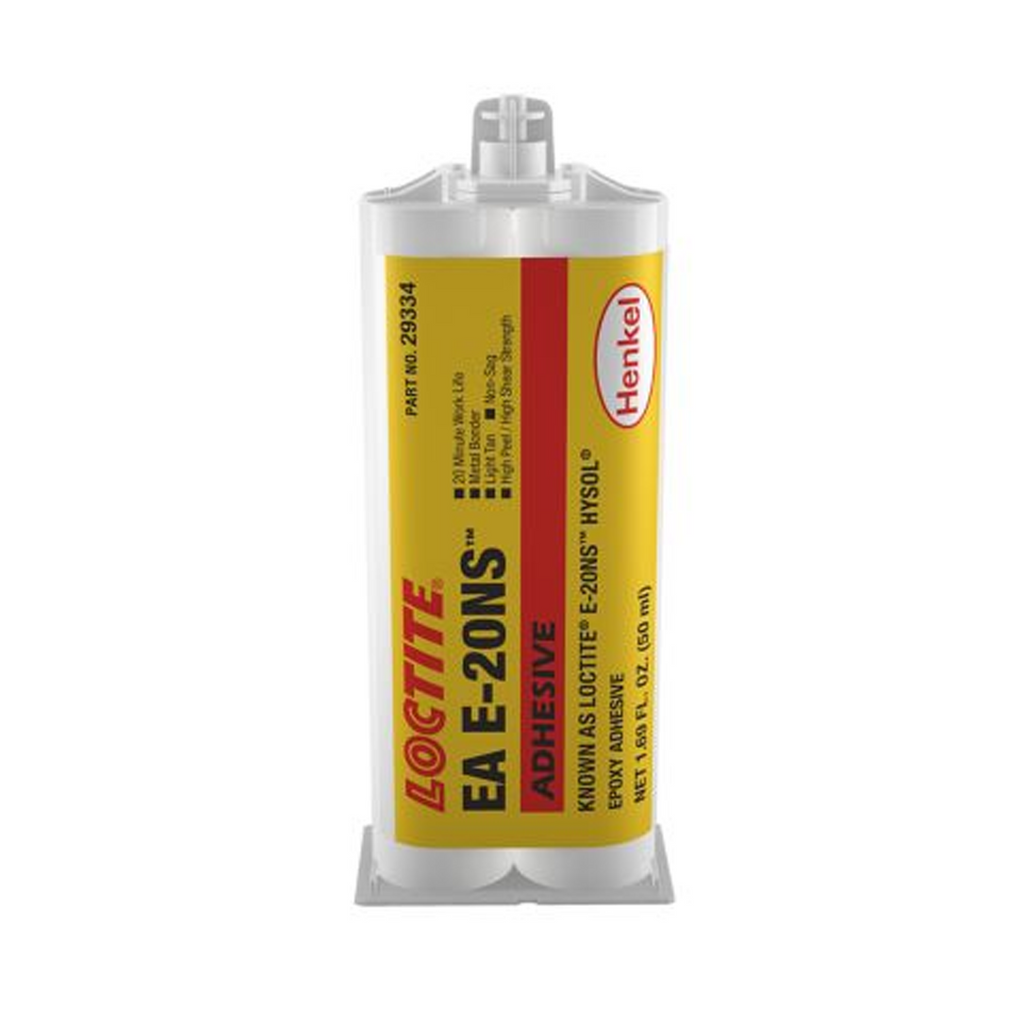

Loctite EA E-20NS Non Sag Epoxy Adhesive

Loctite EA E-20NS Off-White Non Sag Epoxy Overview

Loctite EA E-20NS is a two-part, non-sagging epoxy adhesive designed for structural bonding on a wide range of materials. This off-white adhesive features a 2:1 mix ratio and cures at room temperature to form a tough bondline with high peel and shear strengths. Resistant to chemicals, solvents, and electrical interference, it is ideal for bonding aluminum, stainless steel, glass, ceramics, and plastics. Its non-sagging formula prevents run-off, making it perfect for vertical and overhead applications.

Loctite EA E-20NS Features and Benefits

• Non-Sag Formula: Ensures precise application on vertical or overhead surfaces.

• High Peel and Shear Strengths: Delivers durable bonds that withstand stress.

• Chemical and Solvent Resistance: Protects against environmental exposure.

• Electrical Insulator: Provides reliable dielectric strength for sensitive applications.

• Room Temperature Cure: Simplifies the bonding process for easy application.

Specifications

• Series: Loctite EA E-20NS

• Type: Two Part Epoxy Adhesive

• Components: Resin & Hardener

• Application: Bonding

• Substrates: Aluminum, Stainless Steel, Other Metals, Glass, Ceramics, Plastic

• Color: Off-White

• Available Sizes: 50 mL and 400 mL Cartridges

• Mix Ratio by Volume: 2:1

• Viscosity: Medium

• Specific Gravity: 1.43

• Tack Free Time: 20 Minutes

• Working Life: 20 Minutes

• Shore D Hardness: 84 to 94

• Cure: Room Temperature Cure After Mixing

• Cure Time: Full Cure After 24 Hours

• Glass Transition Temperature: 167°F (75°C)

• Elongation: 4%

• Tensile Strength: 3,335 psi (23 N/mm²)

• Storage Temperature: 46.4°F to 69.8°F (8°C to 21°C)


Recommended Applications

Ideal for bonding aluminum, stainless steel, glass, ceramics, and plastics. Perfect for vertical or overhead applications requiring a tough, durable bondline with high chemical resistance.
