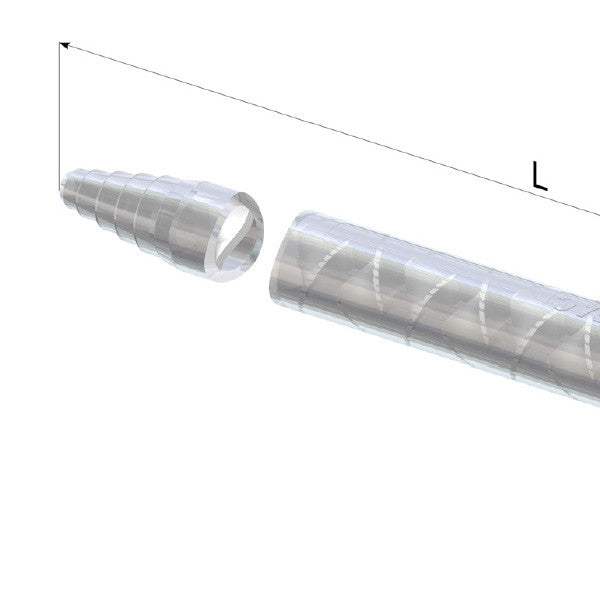

Sulzer Mixpac MFH nozzle with stepped tip

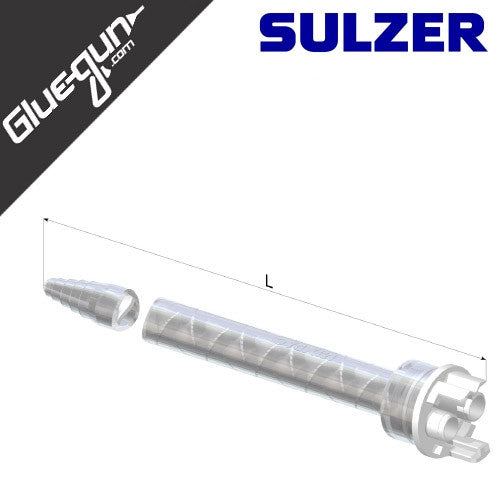

Sulzer Mixpac Statomix MFH Static Mix Nozzles

Roll over image to zoom in Click on image to zoom

Sulzer Mixpac Statomix MFH Static Mix Nozzles

SKU: SULZER MFH 06-18T or 102466

Manufacturer Part #: 102466

Tip Style: Stepped

Number of Elements/Element Diameter: 18 Elements Diameter 6.0 mm

Quantity: Case of 1700

...or choose by SKU / Part Number

Variant

Price:

$1,282.00

Quantity:

Type: Static Mixer
Brand: Sulzer Mixpac
Connection Type: Sulzer F Interface, Sulzer F Series
Adhesive Ratio: 1:1, 2:1
Cartridge Size: 200 ml, 400 ml
Sulzer System: F System

About the Sulzer Mixpac MFH Static Mixer Nozzle

What makes the Sulzer MFH Series static mixer unique is the outlet that connects the nozzle to the cartridge. This patented design is unique to Sulzer allowing the two materials to enter the nozzle through their own orifice completely eliminating the possibility of cross contamination.

The MFH mixers are used for dispensing 1:1 and 2:1 ratio adhesives like epoxy, silicone, urethane and acrylics. These nozzles are for use with Sulzer F Series 200mil and 400mil cartridges.

* Contact us for bulk discounts or less than case quantities on the Sulzer MFH Series mixers.

Sulzer MFH Nozzle Configurations

Sulzer MFH 06-18T
Sulzer MFH 06-24T
Sulzer MFH 06-32T
Sulzer MFH 08-18T
Sulzer MFH 08-24T
Sulzer MFH 08-32T
Sulzer MFH 10-18T
Sulzer MFH 10-24T
Sulzer MFH 10-32T

Helpful Hint: The Sulzer MFHX Series is used for dispensing 4:1 and 10:1 ratios.

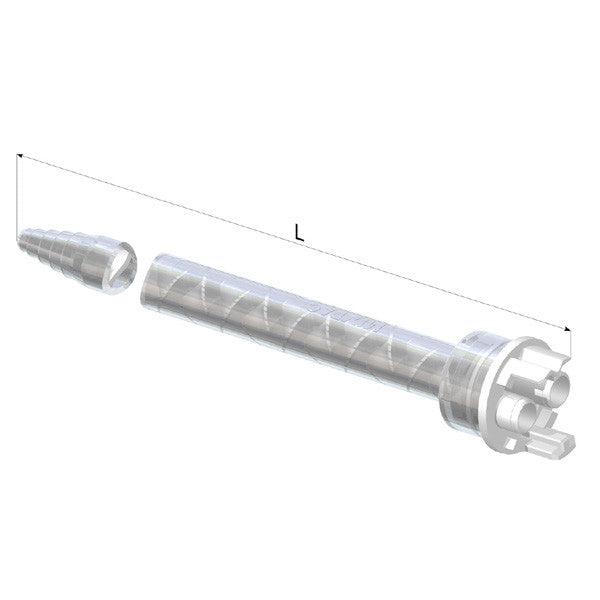

Sulzer Mixpac MFH Static Mix Nozzle Specifications

Mixer helix, 1:1/2:1 with white elements & stepped tip

Part Number	Article/Number	Elements	Ø(mm)	L(mm)	Vol. (ml)
102466	MFH 06-18T	18	6	156	4.36
102467	MFH 06-24T	24	6	194	5.4
116040	MFH 06-32T	32	6	245	6.65
102468	MFH 08-18T	18	8	187	7.4
102469	MFH 08-24T	24	8	234	9.3
102470	MFH 08-32T	32	8	297	11.85
102471	MFH 10-18T	18	10	224	13.09
102472	MFH 10-24T	24	10	283	16.89
110583	MFH 10-32T	32	10	362	21.94
